Icon_CFD

Computational Fluid
Dynamics - CFD

Micropack fluid and fire dynamics engineers use a range of computer models to solve complex flow problems depending upon the goal of the specific project.

Environments of interest can be simulated and studied with a wide range of applications which include building design, HVAC design, sub and supersonic transportation flow, combustion physics or the impact of environmental conditions on various applications, for example how wind impacts upon natural gas movement in congested areas or tidal flow.

CFD software can be used to model a wide variety of events including LPG dispersions, momentum-driven gas leaks, buoyancy-driven gas migration, turbine enclosure modelling (to determine heat flow/gas leaks within the enclosure and the effectiveness of the ventilation/dilution system) as well as gas ingress in HVAC applications and combustion models where the potential consequence or impact of a fire event is of interest.

CFD modelling techniques led to the prescriptive spacing of gas detectors in HVAC applications to detect non-uniform distributions of gas.

Examples of types of scenarios that could be modelled:

cfdb

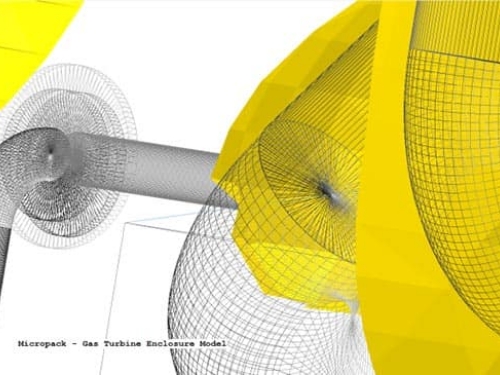

The pressure differentials that drive air/gas flows are analysed in order to determine the characteristics of the specific case and learn more about each problem area.

cfdc

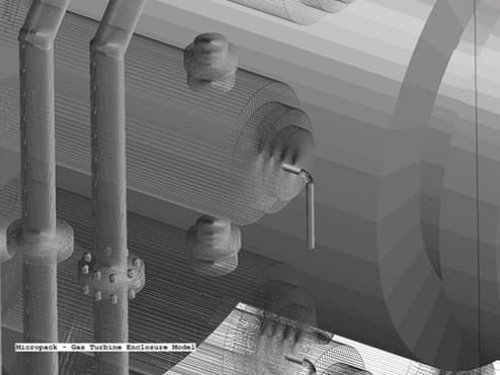

A high level of detail can be represented in the model build and will subsequently be refined and relaxed in order to achieve an optimum balance between visual representation and computational accuracy.

cfdd

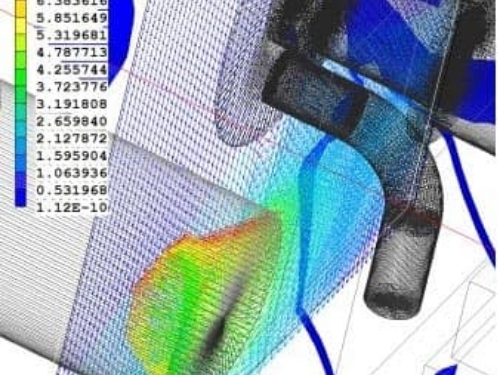

Both local heat (energy) sources and the physical nature of the environment can be scrutinised in order to determine the most effective way to address or control ventilation/gas dispersion scenarios.

71f67488b0857639cee631943a3fc6fa_L

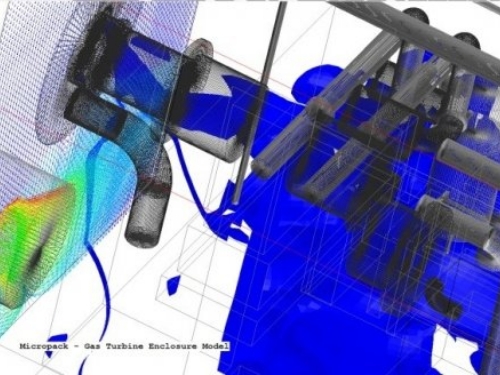

Air flow velocity and gas dispersion can be modelled in order to design the most effective detection system and highlight deficient areas of current enclosure/detection system design.

For further information please do not hesitate to contact a member of our consultancy team today!

Get in touch
