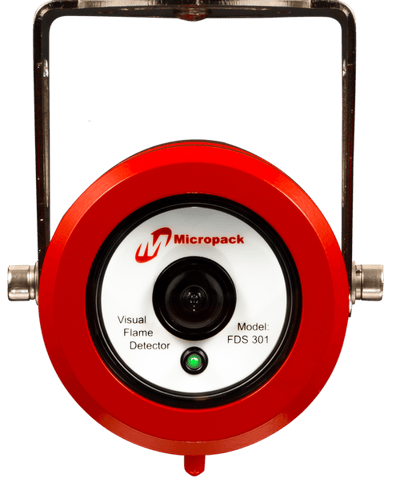

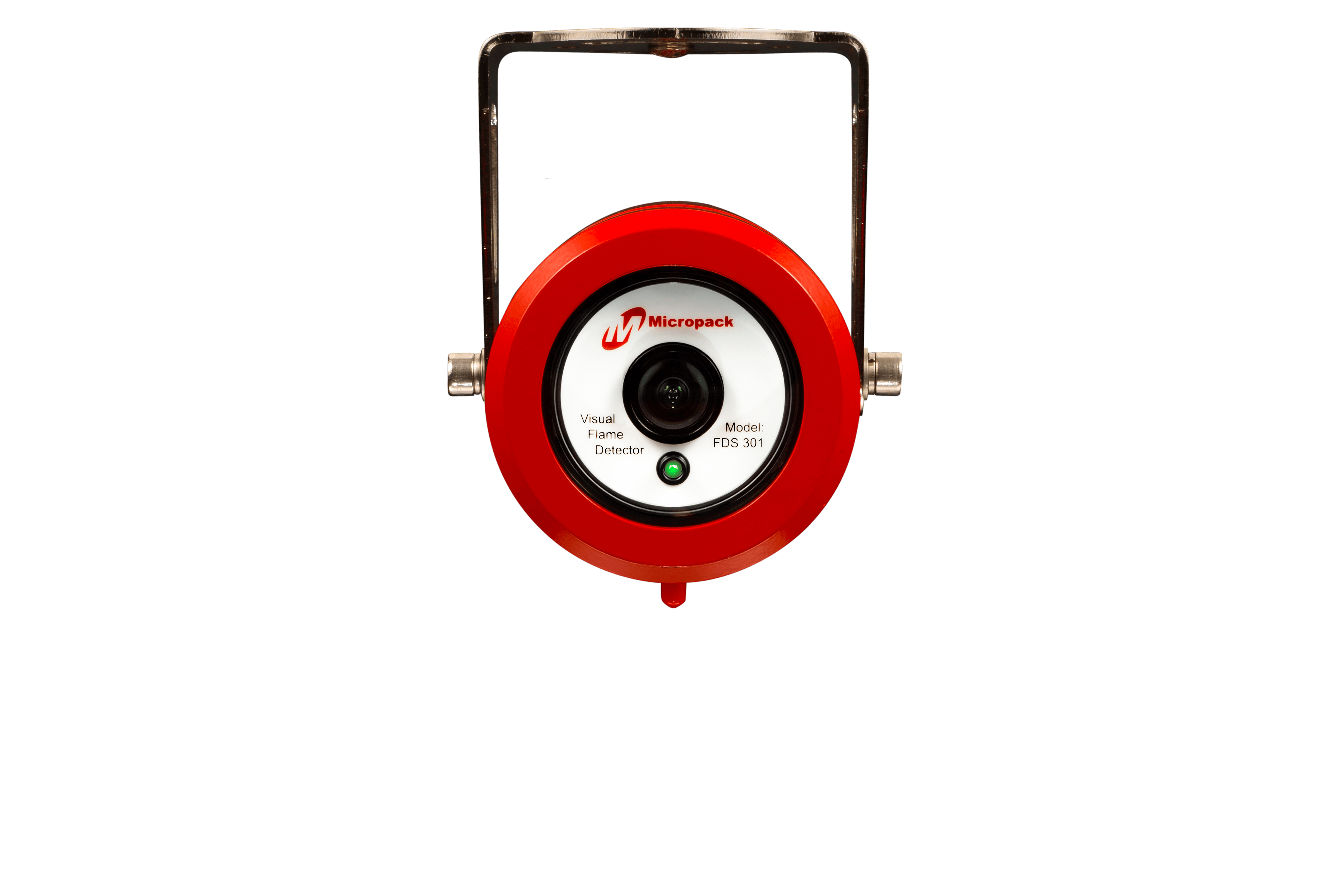

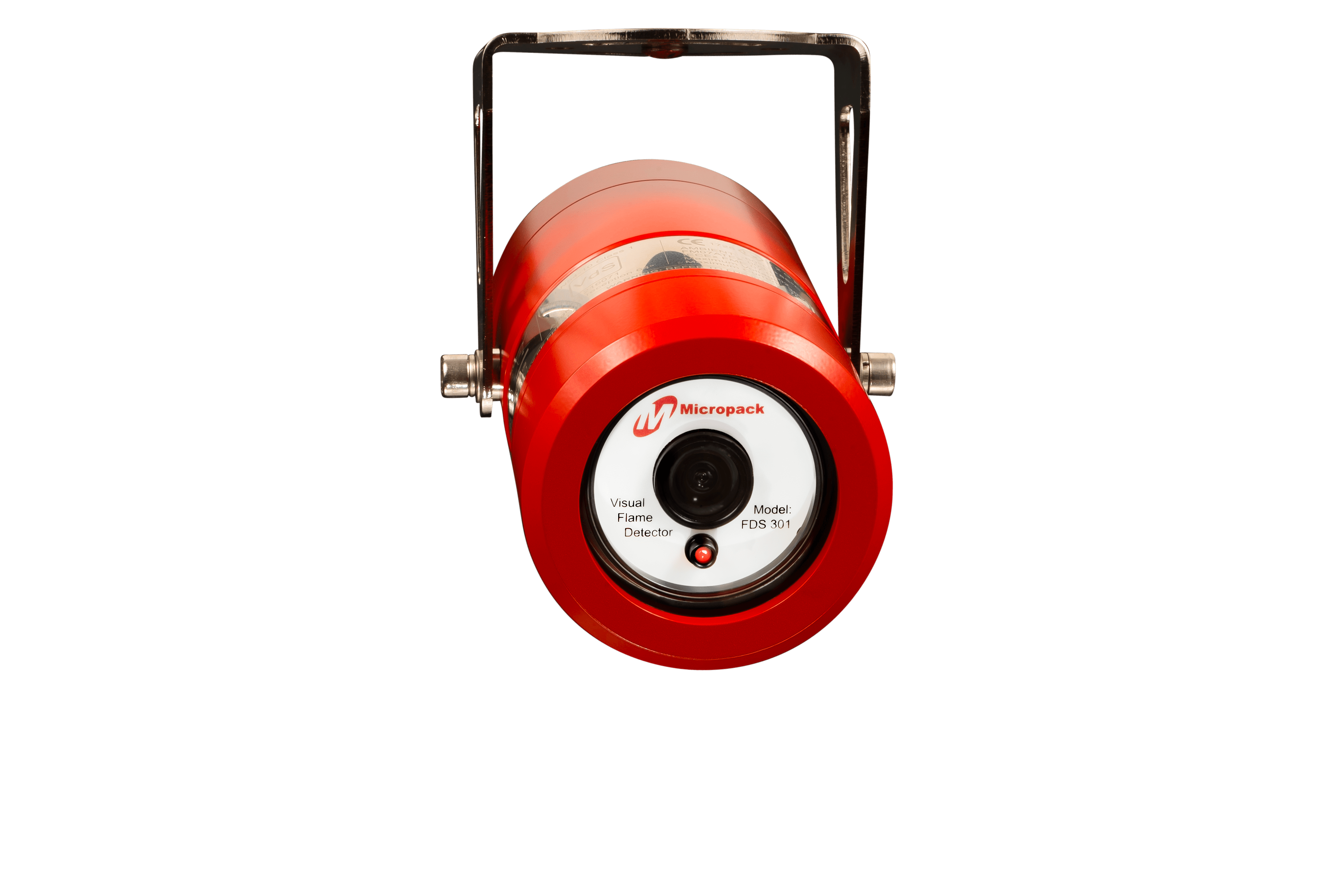

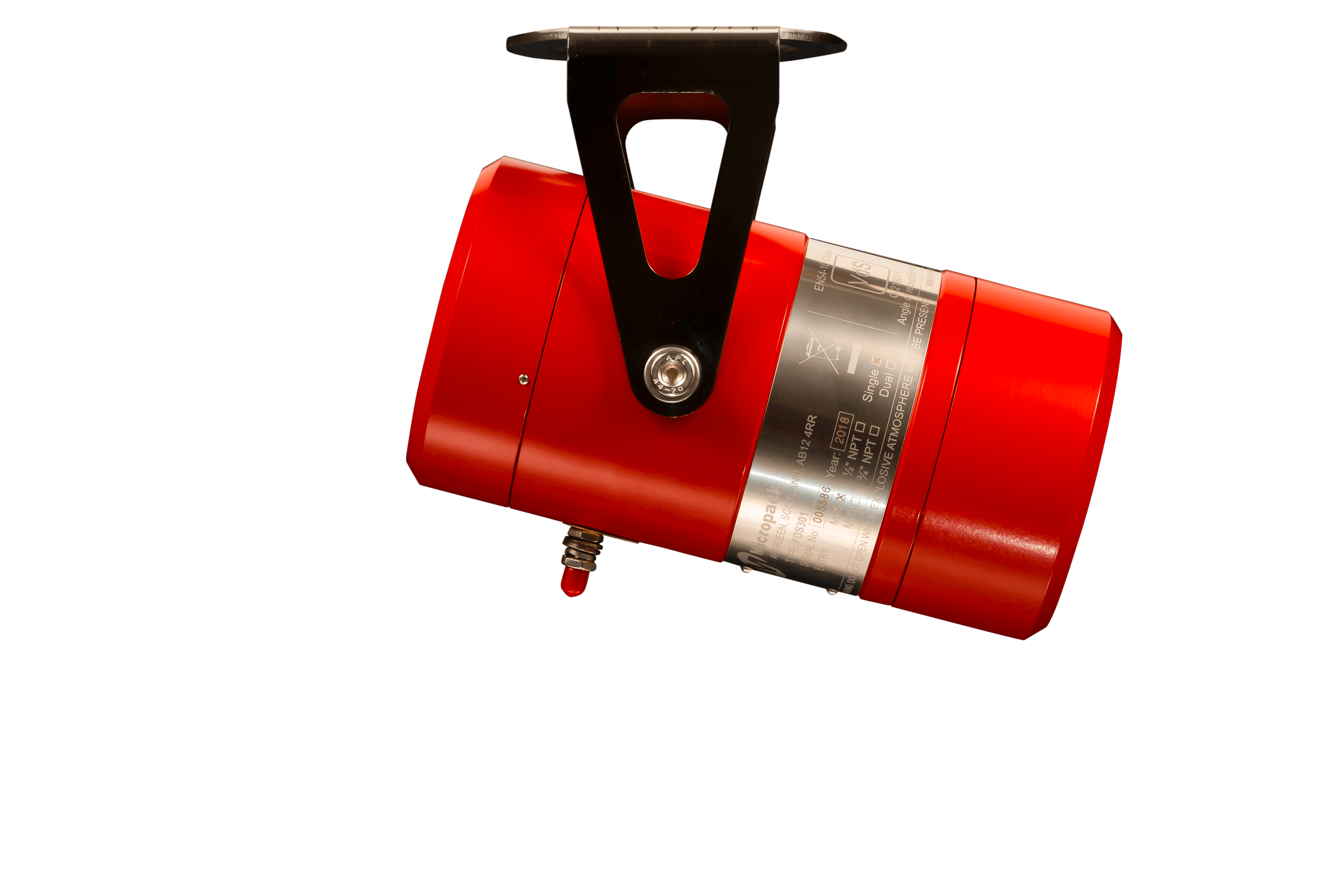

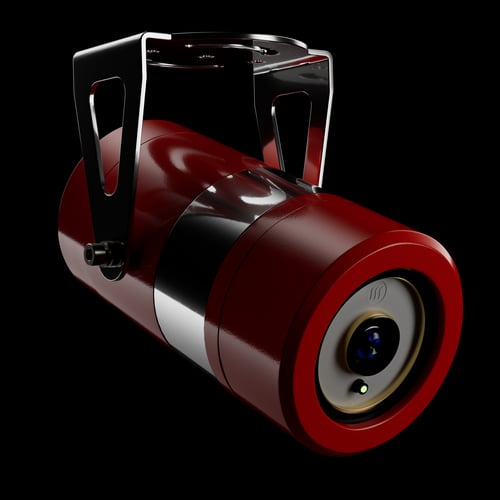

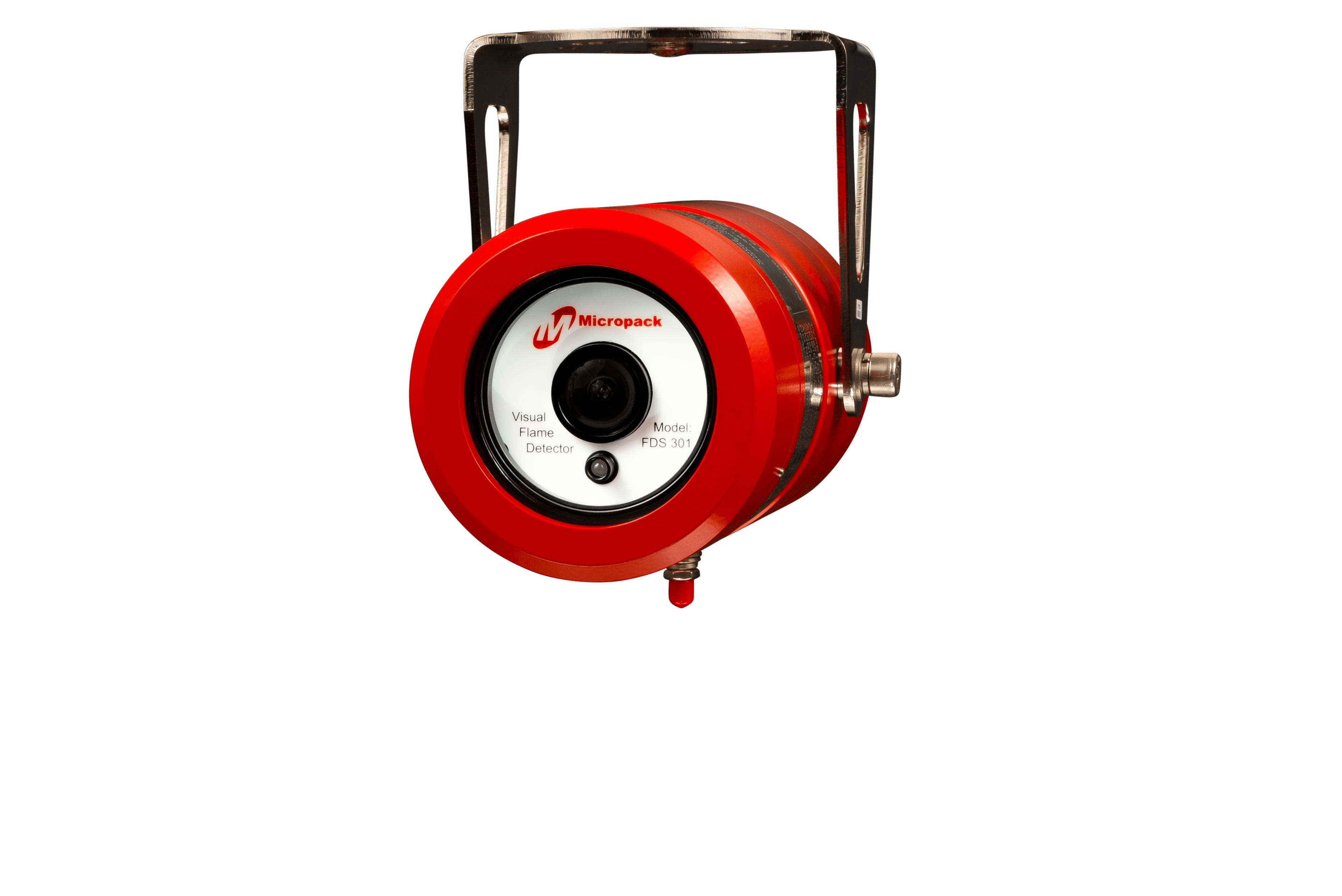

FDS301 Intelligent Visual Flame Detector

With FM, FMC, IECEx, ATEX, CE, and SIL2 approval, the FDS301 is accepted worldwide. This acceptance is enhanced with a range of metric and imperial threads, and both PAL and NTSC video modes.

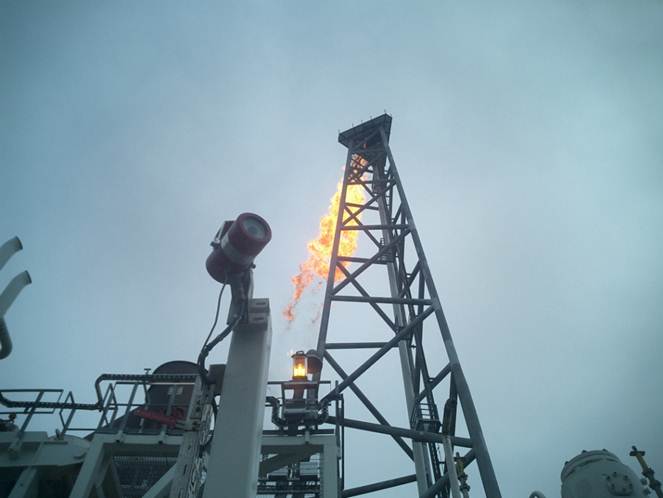

The FDS301 is immune to common sources of unwanted alarms such as hot work (e.g. grinding and welding), hot CO2 emissions (such as turbine exhausts) and reflected flare radiation.

The FDS301 outputs a live video signal over standard twisted pair cable.  The live video provides instant visual verification of fire eliminating the need to send personnel into potentially hazardous situations and reducing the risk of injury. Although the FDS301 transmits live video images, it is not necessary to utilize them as the unit will still be a fully functioning flame detector.

Each FDS301 incorporates an on-board Micro-SD card capable of recording 17 seconds of the alarm video – 8.5 seconds pre-alarm and 8.5 seconds' post-alarm. This feature proves invaluable during incident analysis. It means you will never have an unknown alarm. Operators who have experienced fires have used the recording to put preventative measures in place to ensure the same incident does not occur again.

Unlike any other flame detector on the market, the sensitivity of the detector is pre-set, and no configuration is required. The detector is sensitive to fires of n-heptane 0.1m² at up to 44m within a 90° Horizontal field of view. The sensitivity of the detector is pre-set and no changes in sensitivity are required.

With FM, FMC, IECEx, ATEX, CE, and SIL2 approval, the FDS301 is accepted worldwide. This acceptance is enhanced with a range of metric and imperial threads, and both PAL and NTSC video modes.
